Odyssey 5-20 Tons : TTA / TTH / TWE |
|
|
| |
|
| |
ODDYSSEY - Light Commercial Split System Cooling Units |
| |
A new standard for the air conditioning industry, Trane sets new appearance and new standard for Serviceability... Installability... Reliability... and Flexibility for all applications in split system air conditioning. |
| |
|
| |
 |
| |
|
| |
DESIGN FOR YOU
Trane consulted its customers during the split system design phase to bring a product to the market place which would meet job needs every time. |
| |
|
| |
| QUALITY AND RELIABILITY |
|
Scroll compressors are available from 5 to 20 tons with excellent reliabulity and high efficiency |
|
All units are 100 percent run tested prior to leaving the production line. |
|
| |
|
| |

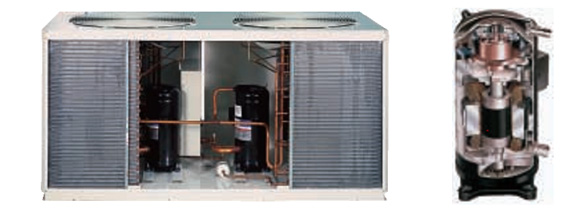

| MANIFOLDING SCROLL COMPRESSORS OPTION (TTA150-240RD) |
|
The key to this system is an oil equalized line connecting the two compressors. In addition, the discharge lines are simple manifolded togethers. |
|
Effeciency and proven Technology. A manifolded set of compressors is more efficient at part load than the compressors with independent circuits. |
|
Manifolded to be single circuit provides cost and time savingfor installation. |
|
| |
|
| |
| MAXIMUM EFFICIENCY |
|
Lower noise operation and higher efficiency with the new generation higher EER Scroll Compressor. |
|
64% fewer parts than a comparable capacity reciprocating compressor. |
|
Single rotating assembly minimizes the friction and mechanical losses. |
|
Smooth operation, similar to a centrifugal compressor, give low torque variation and extend motor life, and minimal vibration reducing wear. |
|
Solid mount with no internal suspension to be worn out. |
|
Integral inlet dirt separator removes contaminants. |
|
Rolling element bearings for higher efficiency reduced friction. No suction or discharge vales for improved efficiency compared to a reciprocating compressor. |
|
| |
|
| |
Flexibility
Trane Split System offers single and dual compressors allowing the right equipment to be matched to the job application and save on operating cost. |
| |
|
| |
Convertibility
Trane air handler can easily be converted for vertical or horizontal airflow in free blow and ducted applications. |
| |
|
| |
| INSTALLATION |
|
Compact design makes smaller footprint in the market so we can save the area cost. |
|
Installation is simplified through fully factory packaged assembled indoor and outdoor units. Ready to run when they arrive at the jobsites. |
|
| |
|
| |
EASE OF SERVICE
Reduction of service time and cost through |
|
Single side access on condenser. |
|
Multiple removable panels on air handlers. |
|
Colored and numbered wiring. |
|
Service valves. |
|
Dual circuits allow for comfort cooling even during service time. (TTA150-240) |
|
| |
|
| |
SYSTEM PERFORMANCE MATRIX |
| |
| Outdoor |
Indoor |
Evaporator |
Total Capacity |
| Unit |
Unit |
cfm |
MBH |

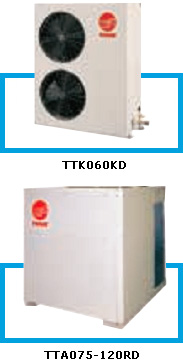

| TTK060KD |
TTH060BD |
2,000 |
60 |
| TTA075RD |
TTH075BD |
2,500 |
75 |
| TTA100RD |
TWE100AD |
3,400 |
100 |
| TTA120RD |
TWE120AD |
4,000 |
120 |
| TTA150RD |
TWE180BD |
6,000 |
160 |
| TTA200RD |
TWE240BD |
6,650 |
200 |
| TTA240RD |
TWE240BD |
8,000 |
240 |
|
| |
| NOTE : |
| 1. |
Matched system ratings are ARI 360. Full load rating is at 95 F, entering condensing air temperature and 80/67 FDB/FWB entering air handler coil. |
| 2. |
Indoor fan power accounts for ARI 360 required external static pressure and losser associated with air filter, casing and wet evaporator coil pressure.service time. (TTA15 |
|
| |
|
| |
| |
 |
| FEATURE AND BENEFITS |
| TTA Condensing Units |
| Features |
|
Powder paint finish. |
|
Innovative cabinet design. |
|
Refrigerant accessories as standard. |
|
Single and dual compressors. |
| |
|
| Optional |
|
Copper fin / Blue fin. |
|
Manifolding single circuit(for TTA150-240RD). |
| |
|
| Benefits |
|
Full covering of all edges and a uniform paint finish for a smooth, attractive and durable cabinet exterior. |
|
The most attractive light commercial condensing unit available. |
|
Each unit ships standard with the service valves, hi-low pressure controls, liquid line filter drier. |
|
Optimized operation and reduced service time. |
|
Designed to provide corrosion protection on sea coast application. |
|
More efficiency at part load. |
|
|
|
| |
 |
| TTH/TWE Air Handler Units |
| Features |
|
500 mm in height (TTH060-100). |
|
Excellent drain pan. |
|
Belt drive. |
|
Factory installed mounting channel(TTH060-100). |
|
Quiet operation. |
|
Convertible for horizontal or vertical configuration (TWE120-240). |
|
Thermal expansion valve.(Except TTH060) |
| |
|
| Optional |
|
Discharge Plenum. |
|
Return air grille (for TWE model only). |
|
High static motor. |
| |
|
| Benefits |
|
Designed to fit easily into tight ceiling spaces. |
|
Specially designed drain pan with a deep pitch to catch and drain water safely away. |
|
Fully adjustable airflow for application versatility and ease of servicing. |
|
Supports the unit from below, and saves time and money for the installer. |
|
Well-insulated cabinet with wide forward curved fans provide quiet operation. |
|
Maximum application flexibility without the extra inventory dedicated models. |
|
For maximum application flexibility and performance, capacity modulation provides improved comfort and backup in the event of a malfunction with one circuit. |
|
Designed for free blow application. |
|
For high static pressure applications. |
|
|
| |
|
| |
|
Large Commercial 25-55 Tons : RAUP / TTV |
|
|
| |
|
| |
LARGE COMMERCIAL Split System 50 Hz - Extend to 55 tons |
| |
|
| |
 |
| |
|
| |
| QUALITY AND RELIABILITY |
|
Hermetic Scroll Compressors are available on all 25-55 ton units, providing excellent reliability and high efficiency. |
|
System reliability is improved by the passive manifolding of compressors with no mechanical parts. |
|
A weathertight cabinet protects the condenser coils. |
|
Dual compressor circuits are used, beginning with the RAUP40 model. |
|
Microprocessor controller with trouble shooting from LED output. |
|
| |
|
| |
| MAXIMUM EFFICIENCY |
|
Quieter and smoother operation with the improved Scroll Compressor. Low torque variations extend motor life and a minimal vibration reduces wear. |
|
Smooth operation, like a centrifugal compressor. |
|
Super efficient when compared to reciprocating compressors. |
|
64% fewer parts than a comparable capacity reciprocating compressor. |
|
Patented 3-dimensional design. Tip seal allows for axial contact and maximum efficiency. |
|
A single rotating assembly minimizes friction and mechanical losses. |
|
Integrated inlet dirt separator removes contaminants. |
|
Rolling element bearings reduce friction for higher efficiency. |
|
The lack of suction or discharge valves further improves efficiency over a comparable reciprocating compressor. |
|
| |
|
| |
SYSTEM PERFORMANCE MATRIX |
| |
| Outdoor |
Indoor |
Evaporator |
Total
Capacity |
Sensible
Capacity
|
Total
Unit
Compressor |
Condenser
Fan kw |
Indoor
Fan |
Control |
Total
System |
| Unit |
Unit |
cfm |
MBH |
MBH |
KW |
each/total |
KW |
KW |
KW |
| RAUP-C30 |
TTV250 |
7,760 |
320.0 |
214.4 |
25.20 |
0.75/2.25 |
3.7 |
0.25 |
31.40 |
| RAUP-C30 |
TTV300 |
9,240 |
340.0 |
241.5 |
25.20 |
0.75/2.25 |
5.5 |
0.25 |
33.20 |
| RAUP-C40 |
TTV300 |
9,240 |
380.0 |
254.6 |
33.60 |
0.75/2.25 |
5.5 |
0.34 |
41.69 |
| RAUP-C40 |
TTV400 |
12,120 |
410.0 |
295.1 |
33.60 |
0.75/2.25 |
5.5 |
0.34 |
41.69 |
| RAUP-C50 |
TTV400 |
12,120 |
500.0 |
335.0 |
42.00 |
0.75/3.00 |
5.5 |
0.49 |
50.99 |
| RAUP-C50 |
TTV500 |
15,130 |
520.0 |
379.6 |
42.00 |
0.75/3.00 |
7.5 |
0.49 |
52.99
|
| RAUP-C60 |
TTV500 |
15,130 |
610.0 |
420.9 |
50.40 |
0.75/4.50 |
7.5 |
0.49 |
62.89 |
| RAUP-C60 |
TTV600 |
18,080 |
660.0 |
493.1 |
50.40 |
0.75/4.50 |
11.0 |
0.49 |
66.39 |
|
| |
| NOTE : |
| 1. |
Matched system ratings are per ARI 360. Full load ratings are at 95 F entering condenser air temperature, and 80/67 F air dry bulb/wet bulb entering the air handler coil. |
| 2. |
Capacities are gross and do not include an evaporator fan motor heat deduction. |
|
| |
|
| |
| |
 |
| FEATURE SUMMARY |
| Condensing Units |
| Standard Features |
|
Hermetic Scroll compressor. |
|
Microprocessor Controller with trouble shooting from LED output. |
|
Copper tube, aluminium W3BS plate fins coil with internal subcooled circuit. |
|
Factory leak and pressure tested at 250 and 400 psig. |
|
Standard ambient operating range of 40 IF to 115 IF. |
|
Unit panels constructed of 0.9 mm. galvanized steel. |
|
Exterior panels are cleaned and then chemically treated and finished with a weather-resistant baked polyester powder paint. |
|
Heavy gauge steel mounting/lifting rails under base. |
|
Direct-drive, vertical discharge. |
|
3-phase motors with permanently lubricated ball bearings. |
|
Utilization range of plus or minus 10 percent of the nameplate voltage. |
|
Built-in current and thermal overload protection for condenser fan motor(s). |
|
Colored and numbered wiring. |
|
3 Wire DOL Starter. |
|
|
|
|
| |
| |
 |
| FEATURE SUMMARY |
| Air Handling Units |
| Standard Features |
|
Vertical or Horizontal discharge configuration. |
|
Zinc coated, heavy gauge, galvanized steel cabinet finished with a baked polyester powder paint. |
|
Completely insulated with fire-retardent, permanent, odorless fiberglass material covered with aluminium foil. |
|
Factory installed thermal expansion valve(s). |
|
Evaporator coil proof tested at 375 psig and leak-tested at 250 psig. |
|
Double inlet, double width, forward cured, evaporotor fan(s) with fixed belt drive. centrifugal type |
|
Thermal overload protection on the evaporator fan motor. |
|
Washable air filters. |
|
Oversized motors for high static pressure applications (Optional). |
|
|
|
| |
|
| |
FAN ARRANGEMENT |
| |
 |
|
|
|
|
